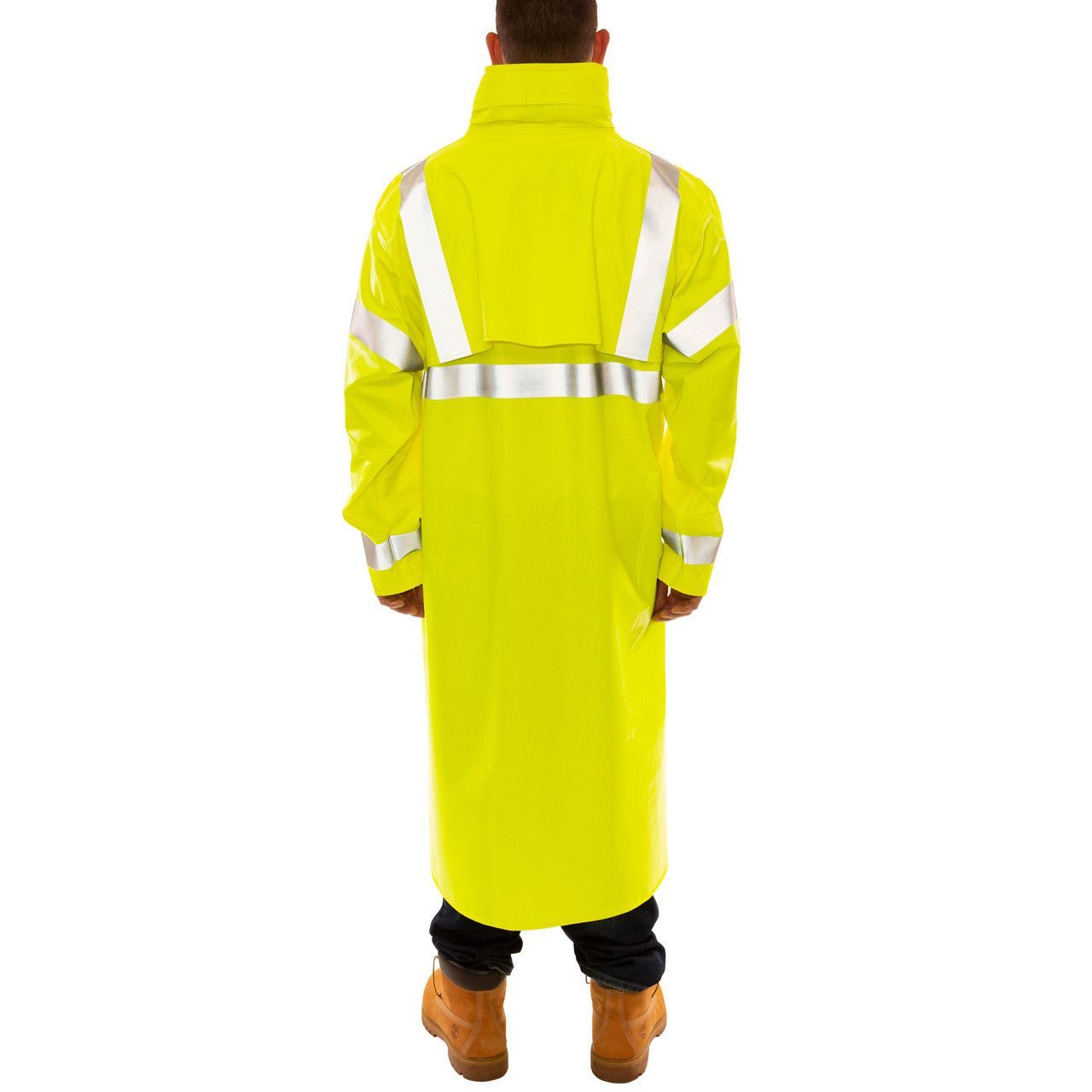

Tingley Eclipse™ C44122/2XL FR Class 3 Hi-Viz Coat

Item #: C44122/2XL

Vendor #: C44122.2X

Fluorescent Yellow/Green Color, 48" Length, 11.3 oz. FR PVC on Non‐Woven Nomex® with Thermo‐Grid™ Technology, HRC 2, 8.7 cal/cm², Size 2XL

Size

2XL

3XL

4XL

Large

Medium

UOM:

Each

Revolutionary Quad-Hazard® protection offers high visibility, liquid proof, arc flash and flash fire protection
Thermo-Grid® technology helps block out heat energy while the flame-resistant PVC coating on Nomex® provides 100% liquid proof protection in a soft, lightweight coat
ANSI/ISEA 107 Type R Class 3 compliant for high visibility
Conforms to ASTM F1891 for Arc Thermal Performance and NFPA 70E - HRC 2
Arc rating 8.7 cal/cm²
Conforms to ASTM 2733 for Flash Fire Performance
Average predicted total burn area < 9.5%
Fluorescent yellow-green background material for excellent daytime visibility
2" Silver reflective tape reflects light for 360° nighttime conspicuity
Overhead shoulder design for complete freedom of movement while working overhead
Therm-O-Rad sealed seams for 100% liquid proof protection
Flame-resistant corduroy collar with roll-a-way hood for comfort and convenience
Zipper/storm fly front with snap closure and hidden hardware seals out heat, wind, rain and contaminants

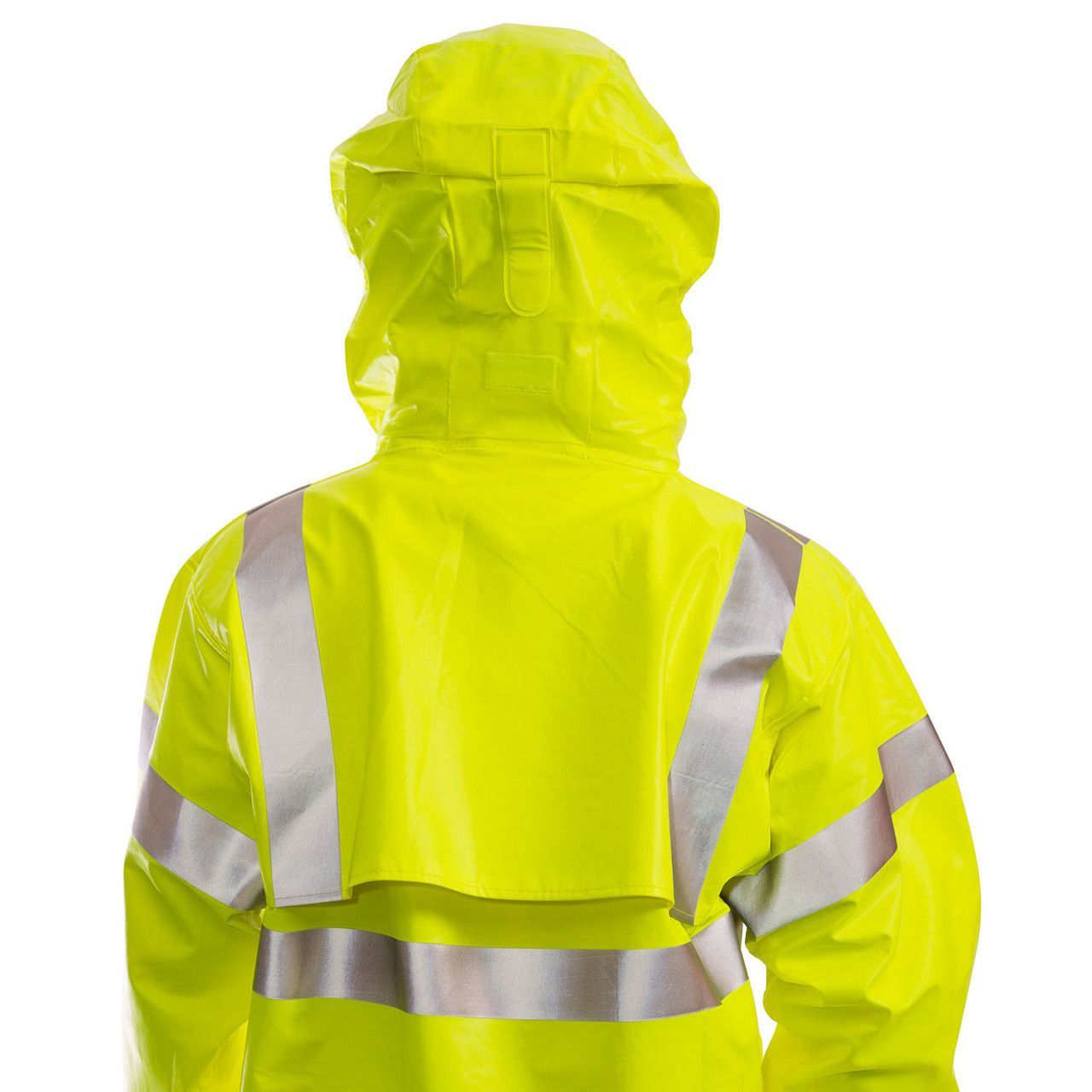

Oversized 3 piece hood with adjustable hook and loop take-up strap for safe fit
Non-conductive, non-corrosive hardware
Full-vented cape back for improved air circulation
D-ring access for fall protection harness
Hook and loop take-up straps on wrists for adjustable fit
Ideal applications include all electric and gas utilities, power generation, pipeline and construction work, and T&D petrochemical applications
Chemical resistance to many acids, oils, alcohols, salts and alkalis

Ansi Class:	3
Arc Flash Electrical Safety Item:	FR Hi-Viz Clothing
Brand:	Eclipse
Calorie Ratings:	8.7 cal/cm²
Closure Type:	Zipper
Electrical Safety Category:	Yes
Has Approval:	No
Hrc:	2
Is Quote Only:	No
Is Returnable:	Yes
Is Virtual Item:	No
Item:	Coat
Size:	2XL
Text Brand:	Eclipse
Text Manufacturer:	Tingley
Use Custom Tabs:	No

C44122 Product Specification Sheet
