NoTrax® 831-3x75/B Switchboard Matting

Item #: 831-3x75/B

Vendor #: 831R0375BL

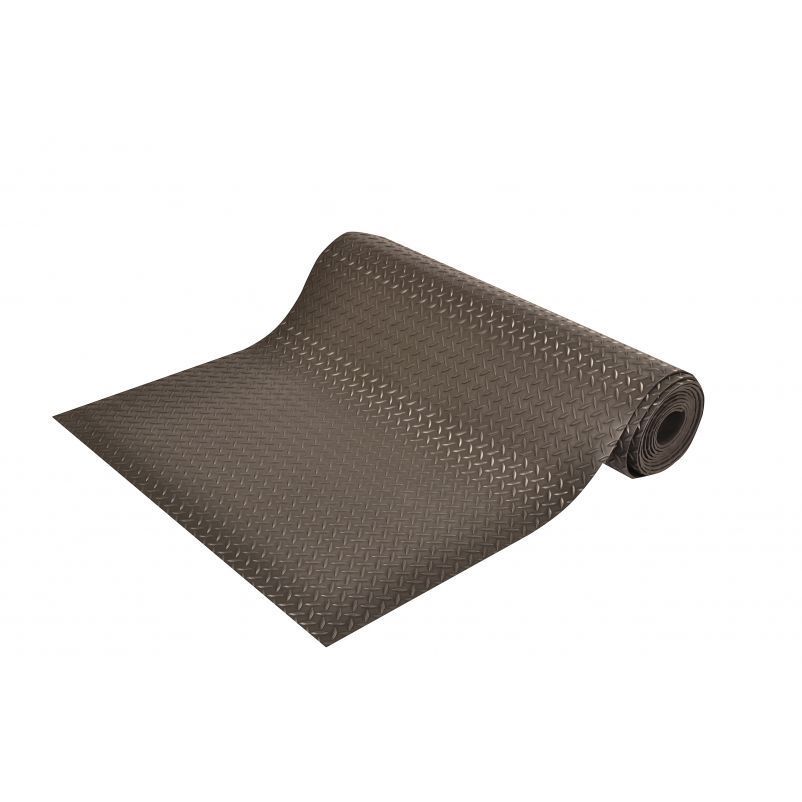

Black Color, Diamond Tread, Insulative/Non-Conductive, 1/4" Thickness, 3' x 75' PVC

Loading...

UOM:

Each

Non-conductive switchboard mats are designed to provide insulation for the worker
Made from a PVC compound, the mat prevents the worker from being grounded, thereby eliminating the possibility of electrical shock

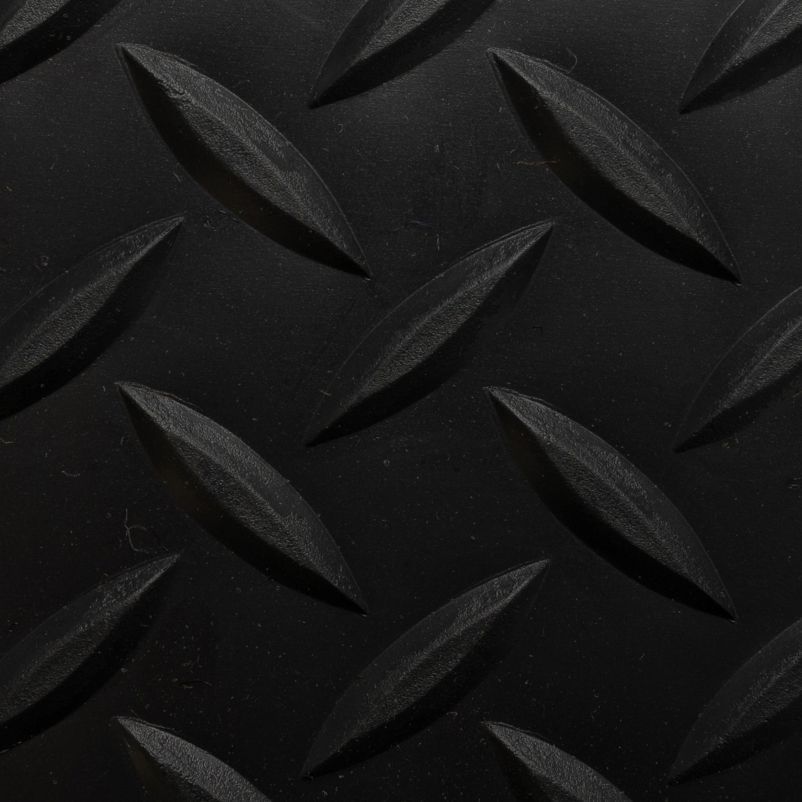

The diamond plate top surface provides increased traction and is easy to sweep clean

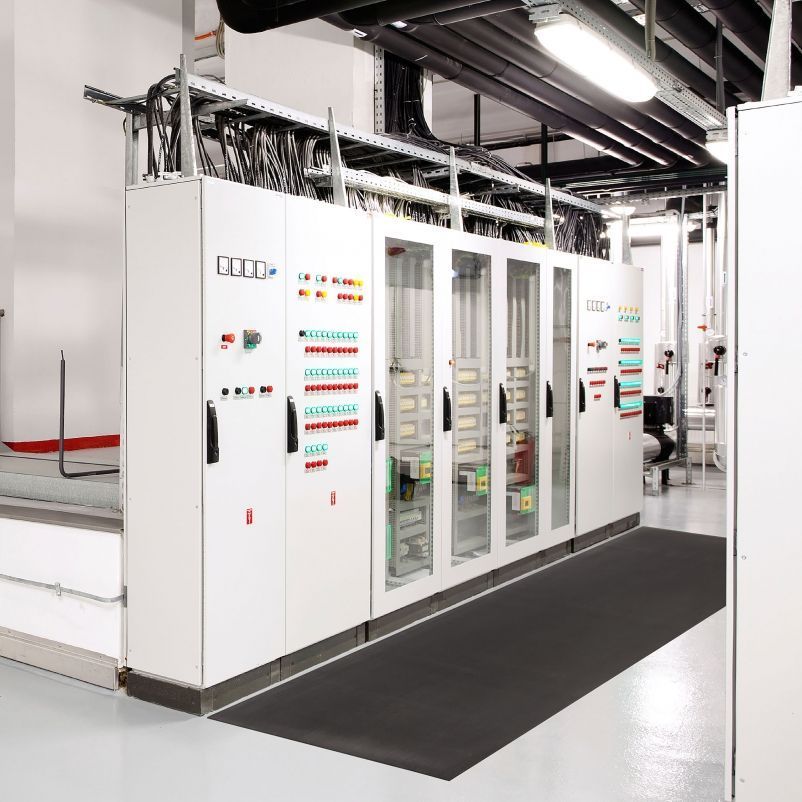

Switchboard mats can be used in dry environments in front of high voltage boxes, electrical fuse boxes, and transformers
Overall thickness: 1/4"
Each square foot is tested in conformance with ANSI/ASTM D-178 specifications and meets or exceeds Type II Compound: Polyvinyl Chloride, Class 2 Dielectric Strength: 30,000 V, Proof test of 20,000 V
Recommended maximum usage of 17,000 V
Note: It is highly recommended matting be replaced every 12 months for optimum performance

Arc Flash Electrical Safety Item:	Switchboard Matting
Class:	2
Electrical Safety Category:	Yes
Has Approval:	No
Is Quote Only:	No
Is Returnable:	Yes
Is Virtual Item:	No
Item:	Switchboard Matting
Size:	3' x 75'
Text Manufacturer:	NoTrax
Type Of Product:	Type II
Use Custom Tabs:	No
